PinkMonkey Online Study Guide-Biology
Click here to enlarge

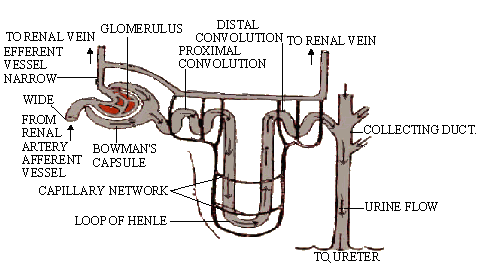

Figure 19.3 Structure of Uriniferous tubule (Nephron)
The glomerulus is surrounded by a cup-shaped structure
called Bowman’s capsule. The Bowman’s capsule and the glomerulus
together are called the Malpighian body. This is lined by a single
layer of flat epithelial cells. The inner membrane of the Bowman’s
capsule is apposed closely to the walls of glomerular capillaries. Each
Bowman’s capsule leads into a renal (kidney) tubule. The renal
tubule is made up of a first convoluted tubule, (descending and ascending
tubules with a Henle’s loop in between) and a second convoluted
tubule leading to a large collecting duct (also called the duct of
Belini). The collecting duct passes through the medulla and opens
into the pelvis of the kidney at the apex of a pyramid (Fig.19.4). The
Malpighian body, proximal and distal convoluted tubules lie in the cortex.,
while Henle’s loop and main collecting ducts are present in the medulla.
The proximal convoluted tubule is lined by ciliated cubical epithelial
cells, the ascending limb and the distal convoluted tubule by cuboidal
epithelium and the descending limb is lined by the flattened epithelial
cells.
Click here to enlarge

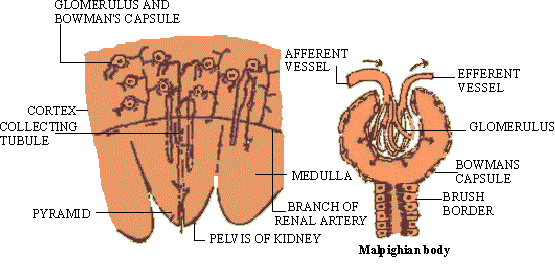

Figure 19.4 A Cross section of Cortex and Medulle
