EXAMPLE 6 Sketch the following:-

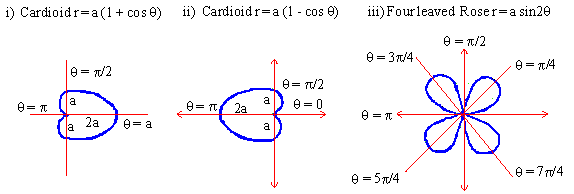

1. Cardioid r = a ( 1 + cos q)


2. Cardioid r = a (1 - cos q)


3. Four leaved Rose r = a sin 2q

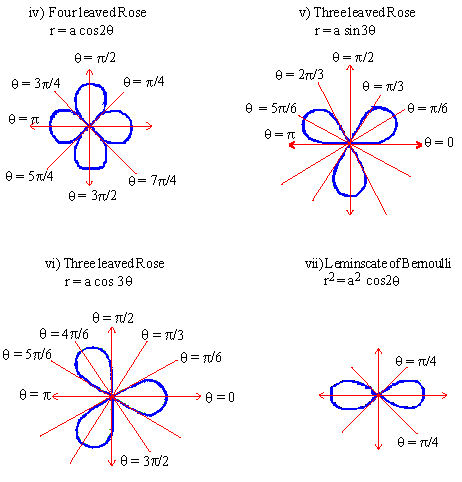

4. Four leaved Rose r = a cos 2q


5. Three leaved Rose r = a sin 3q


6. Three leaved Rose r = a cos 3q


7. Leminscate of Bernoulli r² = a² cos 2q

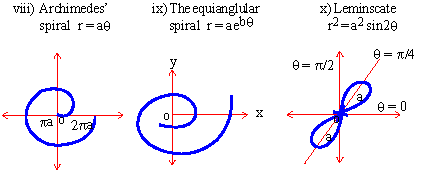

8. Archimedes' spiral r = aq


9. The equiangular spiral r = ae^bq


10. Leminscate r² = a² sin 2q

Solution
